Loaded 4X4 50mm Lift Kit: FORD RANGER PX3 (07/2018-ON)
$2,113.00 - $2,233.00
This lift kit is perfect for the 4X4 owner looking to upgrade the load carrying and towing ability of their 4X4 while gaining some handy additional body clearance when off-road.
There's also the added advantage of improving the ride and handling of your 4X4, something that you can reflect on as you drop the stock, under specced shock absorbers, in the bin.
All of our lift kits are designed to work within the parameters set by the factory IFS suspension geometry, so you won't find a 50mm lift in this shop for a Triton - for example - because a lift of that height in a Triton, won't work terribly well without significant modifications being made.
The only modification required when fitting some of our kits are shortened front bump-stops and if these are required, they'll be supplied as part of the kit.
If you're looking for a well-thought-out, high-quality, durable, reliable, sensible and legal lift kit for your 4X4, one that isn't going to be more trouble than it's worth, then you've just got lucky!
Upgrading your 4X4's suspension is one of the most significant positive changes you can make to the way your 4X4 drives, handles, and performs both on and off-road.
There's no question that the benefits are immense, from both a driving and safety perspective.
Get the right gear fitted, and you'll also transform the way you 4X4 rides.
Our suspension systems are highly reliable 'set and forget' propositions. The design of our shocks is rock-solid and well-proven and we've stayed right away from introducing unnecessary complications and failure points, like external adjusters and remote reservoirs.
Tuning is specific to each kit and we've dialled in just the right amount of compliance and body control.
Each kit is backed by a 3-year unlimited-kilometre warranty.
Tuned, developed and tested in Australia.
Robust Twin-Tube Gas Design with Extra Strong 2.5mm outer wall for maximum strength in the toughest conditions.
Reinforced mounts for ultimate reliability.
Adjustable coil seats on all struts.
36mm High Flow Monotube Piston with multi-stage, velocity-sensitive valving that provides greater control, improved ride quality, and cooler operating temperatures at all speeds.
Multi-Stage foot valve that adjusts to driving conditions.
Heavy-duty 18mm diameter Hardened Chrome Piston Rod that is stronger for off-road driving and resists sideways deflection at full droop.
Nitrogen gas charged to resist fade by reducing oil cavitation.
Premium quality triple lip wiper oil seal that keeps contaminants out and reduces the likelihood of hydraulic leaks.
High Durability Rubber Bushes are used for improved flexibility and longer life.
Exclusive High Temperature, Foam Resistant Hydraulic Oil that resists shock fade and works through a broader temperature range than lesser oils.
We only use very high-quality coil springs, leaf packs, and componentry in our kits.

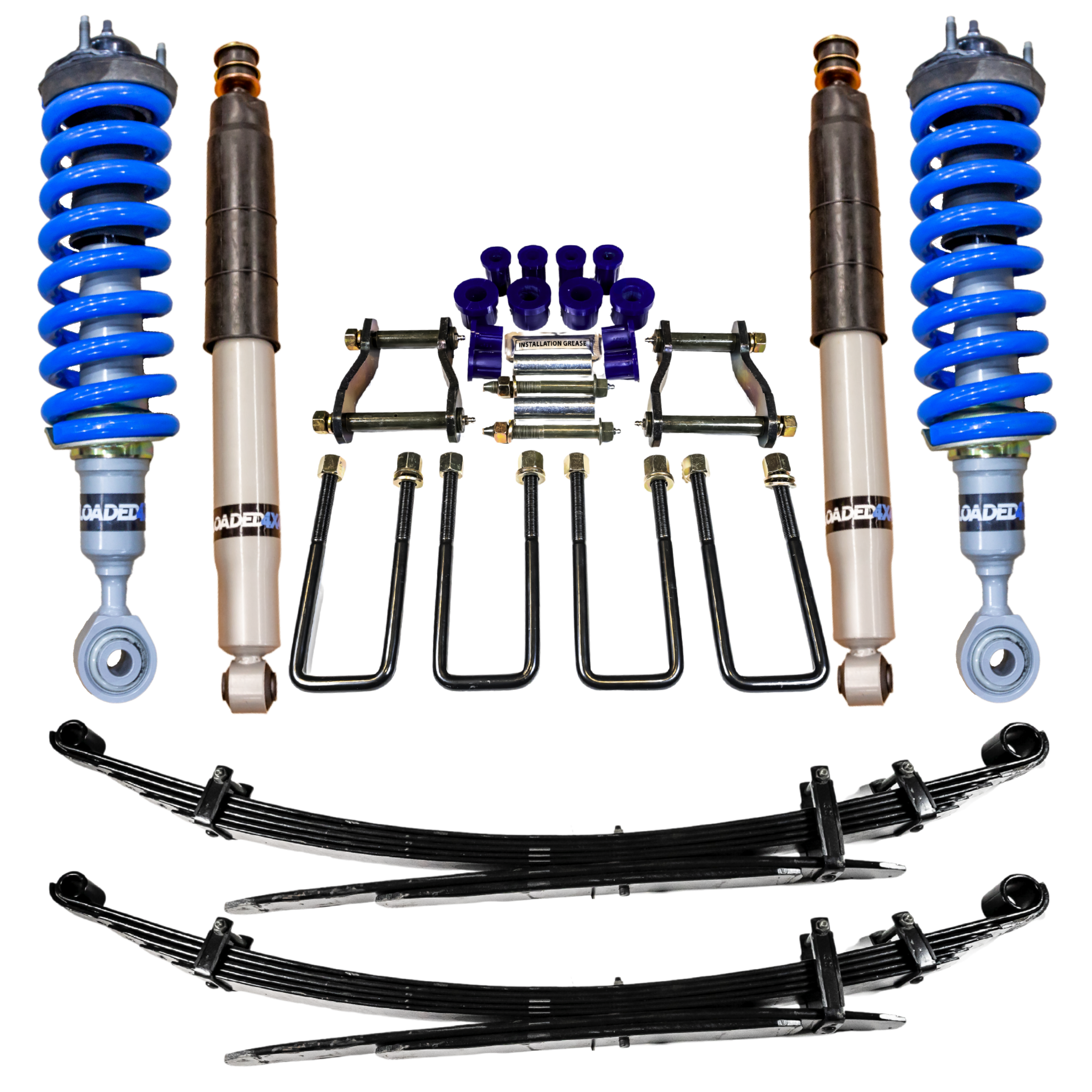

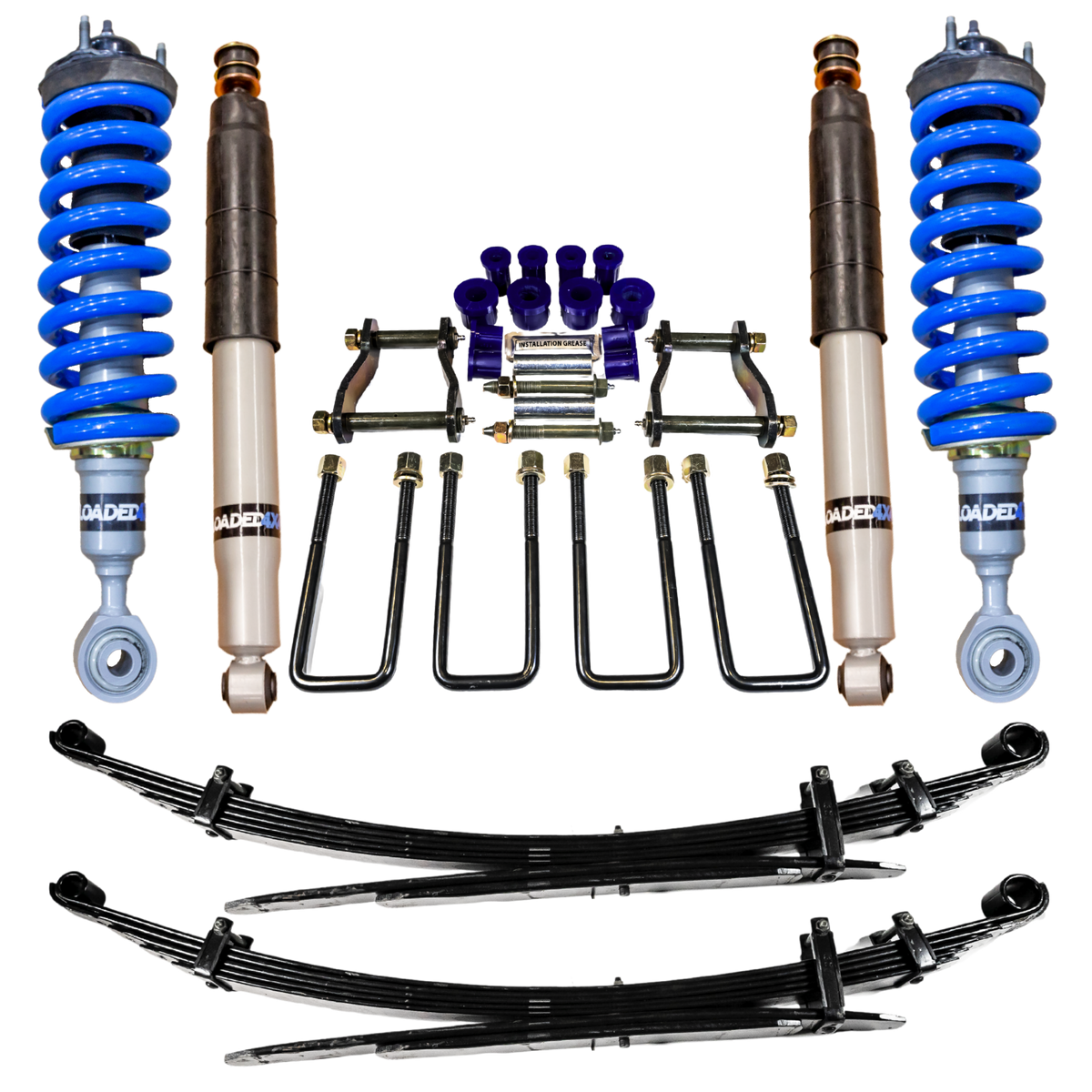

2 x Front struts, strut mounts and coil springs (pre-assembled)
2 x Rear Shock Absorbers
2 x Rear Leaf Springs
2 x Greaseable Shackles
2 x Greaseable Pins
4 x Ubolts
1 x Leaf Spring Bush Kit
1 x Centre Bearing Spacer
Use the selection boxes up near the top of this listing to let us know about your vehicle so that we can supply the springs best suited to your set up and use.
Sport or Dynamic Tune
Our Sport Tune shocks are tuned to work beautifully with 4X4s that carry constant loads making them ideal for work and touring vehicles and anyone who prefers a firmer ride. This setup has been proven over many years and just works.
If you're looking for more "plush" in your 4X4's ride, without it being turned into a wallowing tank, then our Dynamic Tune shocks are frankly, bloody awesome.
The Dynamic Tune shocks retain the superb high-speed wheel and body control the Sport Tune has in spades, and dials in more initial compliance. Vehicle ride and handling is improved dramatically.
Our Dynamic Tune is the perfect set and forget option for all 4X4s, and really the best option for vehicles that haven't been weighed down with accessories.
The Dynamic tune choice costs a few dollars more as each shock is dismantled and fitted with revised valving and bleed settings. It's well worth the slightly higher price though!
We have a growing list of fitting outlets that we are comfortable dealing with and you can select to have your kit fitted by one of these outlets when completing the fitment details section of the ordering process.
If you select a fitting outlet when purchasing your kit,we'll ship to that outlet rather than the address you provide when making the purchase, and the outlet will contact you to arrange fitting and confirm the cost of fitting as soon as your kit has been delivered to them. We'll manage this process for you, all you have to do is wait patiently for their call.Payment for fitting is made directly to the fitting outlet and is not added to the cost of your kit when purchasing in this store.
As a rule of thumb, expect fittings costs (including a wheel alignment) to be around the following:
Levelling Kit:$250 to $350
Lift Kit (Coil rear end):$450 to $550 - if fitting airbags at the same time add an additional $50 to $100.
Lift Kit (Leaf rear end):$500 to $600
The fitting outlets that we are currently working with can be found by clicking on the 'Fitting' drop down menu section of the 'Confirm Fitment Details' box above.
All levelling kits and coil spring lift kits can be delivered to residential addresses.
Any kits that include leaf springs will need to be delivered to either a commercial premise or a local depot used by our freight carrier, from which you'll need to arrange collection.
If you provide your residential address at checkout and your kit has to ship to a depot, we'll contact you to confirm the depot's address. We'll endeavor to choose the one closest to the address you provide at checkout.
It can take up to a week to assemble our suspension kits, as some parts can prove difficult to source due to COVID-19 related local manufacturing and supply issues.
Deliveries are also taking longer than they used to pre-COVID. We'll do our best to get your kit to you as soon as possible, but realistically you should expect to take delivery within 1 - 2 weeks from the day you order.
All Loaded 4X4 suspension kits are covered by a 3-year unlimited-kilometre warranty. Check out ourwarranty information pagefor more information.
Vehicle Specific Note
A slight drivetrain vibration may occur after a lift is fitted to the PX series Rangers. We supply a tail shaft centre bearing spacer as part of the kit to help reduce any vibration that may occur.
